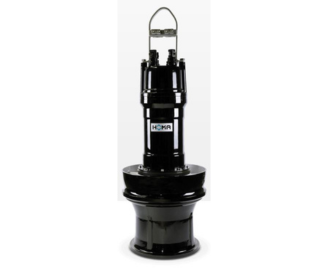

Propeller Pumps-P Series

The Propeller Pumps P Series is designed for high-capacity, low-head water movement applications, delivering efficient performance in large-volume flow systems. Its submersible propeller configuration ensures reliable operation in continuous-duty environments where high discharge volumes are required.

Key Features

  1. Submersible propeller pump for high-volume, low-head applications
  2. Suitable for storm-water drainage, irrigation, and industrial cooling circulation
  3. Designed for large-scale water transport and flood control systems
  4. High-efficiency hydraulic design for continuous operation
  5. Cast iron housing for durability and structural strength
  6. Stainless steel propeller and shaft for corrosion resistance
  7. SiC/SiC mechanical seal for enhanced wear protection
  8. Maximum flow rate up to 1,160–8,290 m³/h
  9. Maximum head up to 1.0–6.7 m
  10. Motor power range: 18.5–170 kW
  11. Engineered for reliable, high-volume water handling in demanding applications

MBS- Monobloc Electric Pumps

The MBS monobloc electric pumps are designed for versatile water supply applications, including domestic, civil, and agricultural use. Engineered for reliable performance, they ensure efficient water transfer even in conditions with sand presence.

Key Features

  1. Suitable for water supply from tanks, basins, and open or 6” wells
  2. Ideal for domestic, civil, and agricultural applications
  3. Thermoplastic resin impellers for durability in sandy conditions
  4. Stainless steel construction for corrosion resistance
  5. Maximum flow rate up to 18 m³/h
  6. Maximum head up to 113 m
  7. Maximum power up to 4 kW
  8. Designed for efficient water pressurization and transfer

Submersible Motors 4"

The 4″ Submersible Motors are designed for reliable underwater operation, featuring a rewindable, oil-filled construction for enhanced durability and long service life. Built with NEMA coupling, these motors are ideal for pumping applications requiring consistent performance.

Key Features

  1. Rewindable, non-toxic oil-filled motor design
  2. 4″ submersible configuration with NEMA coupling
  3. Axial thrust capacity from 3000 to 6500 N
  4. Single-phase power range: 0.37 to 4 kW
  5. Three-phase power range: 0.37 to 7.5 kW
  6. Suitable for continuous underwater pumping applications

Submersible Motors 6"

The 6″ Submersible Motors are engineered for high-performance pumping applications, available in both oil-filled and water-filled designs. Built with NEMA coupling and European-made components, they ensure durability, efficiency, and consistent operation under demanding conditions.

Key Features

  1. Available in non-toxic oil-filled and water-filled versions
  2. 6″ submersible design with NEMA coupling
  3. High axial thrust capacity from 10,000 to 18,000 N
  4. Power range (C140): 3-phase 4 to 26 kW
  5. Power range (MS 152): single-phase 1.5 to 5.5 kW
  6. European components for enhanced quality and reliability

Submersible Motors 8"

The 8″ Submersible Motors are designed for heavy-duty pumping applications, featuring a rewindable water-filled construction and advanced sealing system for reliable operation in demanding conditions. With options for high-temperature use, these motors ensure durability and consistent performance.

Key Features

  1. Rewindable water-filled motor design
  2. 8″ submersible configuration with NEMA coupling
  3. Available in 2-pole and 4-pole versions
  4. Dual sealing system (mechanical seal + sand seal) for harsh conditions
  5. Suitable for hot water applications up to 50°C (PE+PA winding)
  6. Power range: 3-phase 13 kW to 110 kW
  7. Robust construction for high-capacity pumping applications

Submersible Motors 10"

The 10″ Submersible Motors are built for high-capacity pumping applications, featuring a rewindable water-filled design and advanced sealing system for reliable operation in harsh environments. Engineered for durability, they support demanding conditions including elevated water temperatures.

Key Features

  1. Rewindable water-filled motor design
  2. 10″ submersible configuration with NEMA coupling
  3. Available in 2-pole and 4-pole versions
  4. Dual sealing system (mechanical seal + sand seal) for harsh conditions
  5. Suitable for hot water applications up to 50°C (PE+PA winding)
  6. Power range: 3-phase 75 kW to 185 kW
  7. Designed for heavy-duty, high-flow pumping applications

Submersible Motors 12"

The 12″ Submersible Motors are engineered for large-scale pumping applications, delivering high power output with a rewindable water-filled design. Built with advanced sealing and robust construction, they ensure reliable performance in demanding and high-temperature conditions.

Key Features

  • Rewindable water-filled motor design
  • 12″ submersible configuration with NEMA coupling
  • Available in 2-pole and 4-pole versions
  • Dual sealing system (mechanical seal + sand seal) for harsh conditions
  • Suitable for hot water applications up to 50°C (PE+PA winding)
  • Power range: 3-phase 150 kW to 300 kW
  • Designed for heavy-duty, high-capacity pumping applications

FS-98 Floating Impellers

The FS-98 floating impeller submersible pump is designed for efficient water extraction in sandy conditions, making it ideal for boreholes and demanding applications across civil, agricultural, and industrial sectors.

Key Features

  1. Floating impeller design for handling sand up to 300 g/m³
  2. Suitable for boreholes with diameter less than 104 mm
  3. Applicable for lifting, pressurization, and water distribution
  4. Supports both vertical and horizontal installation
  5. Durable construction with polycarbonate, Noryl, brass, and stainless steel
  6. Maximum flow rate up to 12 m³/h
  7. Maximum head up to 390 m
  8. Maximum power up to 7.5 kW
  9. Reliable performance in harsh and sandy environments

NS-95/NS-96 Radial Electric Pumps

The NS-95/NS-96 radial electric pumps are designed with next-generation hydraulics to deliver high performance and efficiency in a compact design. Built with robust materials, they ensure reliable operation in demanding conditions while enabling easy maintenance.

Key Features

  1. Advanced radial hydraulic design for high efficiency
  2. Compact construction for space-saving installation
  3. Durable materials: polycarbonate, brass, and stainless steel
  4. Designed for easy removal, maintenance, and assembly
  5. Maximum flow rate up to 25 m³/h
  6. Maximum head up to 355 m
  7. Maximum power up to 7.5 kW
  8. Suitable for demanding civil, agricultural, and industrial applications

NR-151 / NR-152 - Radial Electric Pumps

The NR-151 / NR-152 radial electric pumps are designed for high-capacity water distribution from large-diameter boreholes, delivering powerful performance across agricultural, industrial, and civil applications.

Key Features

  1. Ideal for boreholes with minimum diameter of 156 mm
  2. Integrated check valve for reliable operation
  3. Suitable for water distribution, washing systems, and agriculture
  4. Robust construction with polycarbonate, cast iron, carbon steel, and stainless steel
  5. Maximum flow rate up to 64 m³/h
  6. Maximum head up to 540 m
  7. Maximum power up to 37 kW
  8. Designed for heavy-duty and high-performance applications

S-151 Semi-axial Electric pumps

The S-151 semi-axial electric pumps are designed for high-performance borehole pumping, offering excellent wear resistance and reliability in demanding applications. With robust construction and versatile configurations, they are ideal for large-scale water transfer.

Key Features

  1. Semi-axial hydraulic design for high flow performance
  2. Suitable for boreholes with minimum diameter of 158 mm
  3. Investment cast impellers and diffusers for enhanced durability
  4. Equipped with counter thrust ring and guide bushings
  5. Available in vertical and horizontal configurations
  6. Materials include cast iron, carbon steel, stainless steel, bronze, and duplex
  7. Maximum flow rate up to 90 m³/h
  8. Maximum head up to 390 m
  9. Maximum power up to 37 kW
  10. Ideal for agriculture, mining, offshore, and industrial applications

NR-201 Radial Electric Pumps

The NR-201 radial electric pumps are designed for high-head applications, delivering powerful performance for water lifting and distribution in demanding civil and industrial systems.

Key Features

  1. Radial hydraulic design for very high head applications
  2. Integrated check valve for reliable operation
  3. Stainless steel outer jacket for durability
  4. Suitable for water supply, irrigation, washing systems, and underground extraction
  5. Materials include cast iron, brass, and stainless steel
  6. Maximum flow rate up to 120 m³/h
  7. Maximum head up to 782 m
  8. Maximum power up to 92 kW
  9. Engineered for heavy-duty and high-pressure applications

S-181 Semi-axial Electric Pumps

The S-181 semi-axial electric pumps are designed for high-capacity pumping in extreme conditions, offering reliable performance and flexibility through a wide range of material options.

Key Features

  1. Semi-axial design for high flow applications
  2. Engineered for reliable operation in demanding environments
  3. Wide material options including cast iron, stainless steel, bronze, and duplex
  4. Designed for ease of maintenance and serviceability
  5. Maximum flow rate up to 228 m³/h
  6. Maximum head up to 338 m
  7. Maximum power up to 92 kW
  8. Suitable for civil, industrial, and heavy-duty applications

NR-250 Radial Electric Pumps

The NR-250 radial electric pumps are designed for extreme high-head applications, delivering powerful and reliable performance in demanding civil and industrial systems.

Key Features

  1. Radial design optimized for very high head performance
  2. Integrated check valve for secure and stable operation
  3. Stainless steel outer jacket for enhanced durability
  4. Suitable for water supply, irrigation, washing systems, and underground extraction
  5. Materials include cast iron and stainless steel
  6. Maximum flow rate up to 210 m³/h
  7. Maximum head up to 955 m
  8. Maximum power up to 185 kW
  9. Compact design for high-pressure, heavy-duty applications

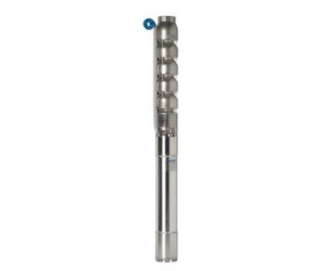

S-252/S-253 Semi-axial Electric Pumps

The S-252/S-253 semi-axial electric pumps are designed for high-efficiency, high-output applications, offering exceptional flexibility across a wide range of demanding environments.

Key Features

  1. Semi-axial design for high flow and efficient performance
  2. Compatible with 8″, 10″, and 12″ motors
  3. Suitable for irrigation, offshore, industrial, and mining applications
  4. Wide material options: cast iron, stainless steel, bronze, and duplex
  5. Maximum flow rate up to 400 m³/h
  6. Maximum head up to 388 m
  7. Maximum power up to 170 kW
  8. Engineered for large-scale and high-capacity pumping systems

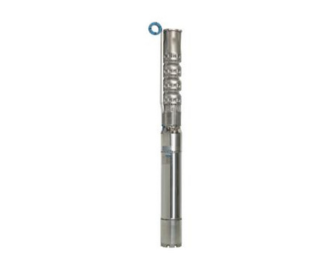

S-302 Semi-axial Electric Pumps

The S-302 semi-axial electric pumps are engineered for high-capacity and high-reliability performance, featuring robust construction and adaptable configurations for demanding applications across multiple sectors.

Key Features

  1. Semi-axial hydraulic design for high flow efficiency
  2. Investment-cast impellers and diffusers for enhanced wear resistance
  3. Equipped with guide bushings and counter thrust ring
  4. Available in vertical and horizontal configurations
  5. Adaptable design for application-specific requirements
  6. Materials include cast iron, stainless steel, bronze, and duplex
  7. Maximum flow rate up to 575 m³/h
  8. Maximum head up to 384 m
  9. Maximum power up to 300 kW
  10. Suitable for agriculture, mining, offshore, civil, and industrial applications

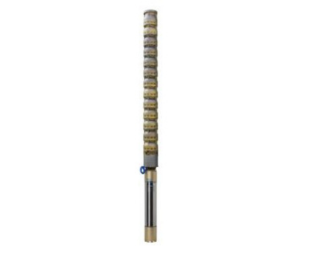

S-350 Semi-axial Electric Pumps

The S-350 semi-axial electric pumps are designed for high-capacity, reliable operation in extreme conditions, offering flexible configurations and easy maintenance for demanding applications.

Key Features

  1. Semi-axial design for high flow performance
  2. Available in horizontal and vertical configurations
  3. Compatible with 2-pole and 4-pole motor options
  4. Engineered for reliable operation in extreme conditions
  5. Wide material selection for application flexibility
  6. Materials include cast iron, bronze, and duplex
  7. Maximum flow rate up to 725 m³/h
  8. Maximum head up to 196 m
  9. Maximum power up to 300 kW
  10. Suitable for civil, industrial, and heavy-duty applications

Sub TWI 6

The Sub TWI 6 is a stainless-steel multistage submersible pump designed for efficient water handling across wells, tanks, irrigation systems, and pressure boosting applications. Built for flexibility, it supports both vertical and horizontal installation with reliable cooling from the pumped medium.

Key Features

  1. Multistage submersible pump for high-efficiency water transfer
  2. Suitable for wells, tanks, irrigation, and pressure boosting applications
  3. Stainless steel hydraulics, impellers, and shaft (AISI 304 / 431)
  4. Flow range from 1 to 250 m³/h
  5. Maximum operating pressure up to 40 bar
  6. Flexible installation: vertical or horizontal
  7. Reliable cooling through pumped medium for stable operation

Sub TWI 8

The Sub TWI 8 is a stainless-steel multistage submersible pump designed for reliable water extraction and pressure boosting in demanding applications. Its robust construction ensures stable performance in boreholes, wells, and industrial systems, with flexible installation options for varied site conditions.

Key Features

  1. 8″ multistage submersible pump for high-efficiency operation
  2. Suitable for borehole extraction, groundwater lowering, and water supply systems
  3. Ideal for irrigation and industrial/process water applications
  4. Stainless steel hydraulics, impellers, and shaft for durability
  5. Flow range from 1 to 250 m³/h
  6. Maximum pressure up to 40 bar (high head depending on model)
  7. Suitable for vertical or horizontal submersible installation (tie-strap design)

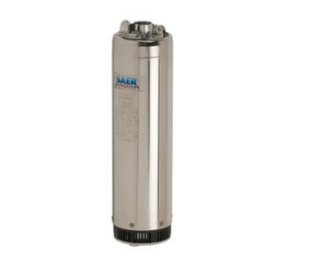

ENBLOC-MBS

The ENBLOC-MBS is a compact submersible en-bloc pump designed for reliable water supply and pressurisation across domestic, civil, agricultural, and industrial applications. Engineered for durability, it delivers stable performance even in sandy water conditions with flexible installation options.

Key Features

  1. Compact en-bloc submersible design for efficient operation
  2. Suitable for wells, tanks, and basins water supply systems
  3. Ideal for domestic, civil, agricultural, and industrial pressurisation
  4. Stainless steel external jacket (AISI 304) for corrosion resistance
  5. Pump and motor shaft in stainless steel (AISI 431)
  6. Abrasion-resistant thermoplastic resin impellers and diffusers
  7. Maximum flow rate up to 21 m³/h
  8. Maximum head up to 127 m
  9. Maximum power up to 5 kW
  10. Reliable performance in sandy and challenging water conditions

NS95/NS96

The NS95/NS96 submersible pumps are designed for efficient water lifting, pressurisation, and distribution in wells, tanks, and natural basins. Built with a compact 4-inch radial impeller design, they ensure reliable performance, easy installation, and long service life in submerged applications.

Key Features

  1. 4″ submersible radial-impeller pump design for compact installation
  2. Suitable for wells (minimum 104 mm diameter), tanks, and basins
  3. Ideal for irrigation, domestic, civil, industrial, and mining applications
  4. Stainless steel outer motor housing for corrosion resistance
  5. Techno-polymer impellers and diffusers (glass-fibre reinforced)
  6. Stainless steel shaft (AISI 431) for durability
  7. Wear-resistant diffuser rings for extended service life
  8. Maximum flow rate up to 25 m³/h (50 Hz) / 30 m³/h (60 Hz)
  9. Maximum head up to 355 m (50 Hz) / 521 m (60 Hz)
  10. Maximum power up to 7.5 kW

FS98

The FS98 submersible pump is designed for efficient water lifting, pressurising, and distribution from wells, basins, and tanks. Its floating impeller technology ensures reliable performance even in sandy and abrasive water conditions, making it suitable for a wide range of water supply applications.

Key Features

  1. 4″ submersible pump with floating impeller design
  2. Suitable for wells, basins, and tanks water extraction
  3. Ideal for civil, agricultural, industrial, and irrigation applications
  4. Handles sand and suspended particles up to 300 g/m³
  5. Stainless steel external shell and shaft (AISI 304 / AISI 431)
  6. Glass-fibre reinforced polycarbonate impellers and diffusers
  7. Wear-resistant components for extended durability
  8. Maximum flow rate up to 14.5 m³/h (60 Hz)
  9. Maximum head up to 396 m
  10. Maximum power up to 7.5 kW

VR140

The VR140 submersible pump is designed for efficient clean-water lifting from deep wells, tanks, and basins. Built with a robust 6″ radial design, it ensures reliable performance across agricultural, industrial, marine, and offshore applications.

Key Features

  1. 6″ radial submersible pump for deep-well water extraction
  2. Suitable for agriculture, civil, industrial, mining, marine, and offshore use
  3. Stainless steel investment-cast body (AISI 304) for durability
  4. Stainless steel shaft and internal hydraulics for corrosion resistance
  5. Maximum flow rate up to 24 m³/h
  6. Maximum head up to 306 m
  7. Maximum operating pressure up to 30 bar
  8. Motor power up to 15 kW
  9. Designed for robust and efficient submerged operation

VS6

The VS6 submersible pump is designed for efficient clean-water lifting, distribution, and pressurisation from wells, tanks, and basins. Its 6″ semi-axial hydraulic design ensures high efficiency and reliable performance across demanding submerged applications.

Key Features

  1. 6″ semi-axial submersible pump for high-efficiency operation
  2. Suitable for wells, tanks, and basins water supply systems
  3. Ideal for civil, agricultural, industrial, mining, and offshore applications
  4. Cast iron / Super Duplex / stainless steel construction (variant dependent)
  5. Maximum flow rate up to 100 m³/h (60 Hz) / 90 m³/h (50 Hz)
  6. Maximum head up to 315 m (60 Hz) / 308 m (50 Hz)
  7. Maximum power up to 37 kW
  8. Designed for robust and continuous submerged operation

S151-152

The S151-152 submersible pump is designed for efficient water lifting, pressurisation, and distribution from wells, tanks, and basins. Its semi-axial hydraulic design with investment-cast components ensures high efficiency, durability, and reliable performance in demanding applications.

Key Features

  1. 6″ semi-axial submersible pump for high-performance water transfer
  2. Suitable for wells, tanks, basins, and offshore water supply systems
  3. Ideal for civil, agricultural, industrial, and marine applications
  4. Investment-cast impellers and diffusers for superior wear resistance
  5. Cast-iron housing with cast-iron or steel hydraulic components (variant dependent)
  6. Stainless steel shaft (AISI 431) for long service life
  7. Maximum flow rate up to 100 m³/h (60 Hz) / 90 m³/h (50 Hz)
  8. Maximum head up to 452 m (60 Hz) / 390 m (50 Hz)
  9. Maximum power up to 37 kW
  10. Designed for reliable operation in harsh and continuous-duty environments

NR 151-152

The NR 151-152 submersible pump is designed for reliable clean-water lifting and distribution from wells, tanks, and basins. Its robust radial hydraulic design ensures high efficiency, wear resistance, and long service life in demanding submerged applications.

Key Features

  1. 6″ radial submersible pump for high-efficiency water transfer
  2. Suitable for wells, tanks, basins, and offshore water supply systems
  3. Ideal for civil, agricultural, industrial, mining, and irrigation applications
  4. Stainless steel outer shell and shaft, or cast-iron/stainless-steel hydraulics (variant dependent)
  5. Maximum flow rate up to 64 m³/h (50 Hz) / 70 m³/h (60 Hz)
  6. Maximum head up to 540 m (50 Hz) / 455 m (60 Hz)
  7. Maximum power up to 37 kW
  8. Designed for reliable operation under continuous submerged conditions

NR201

The 8″ radial impeller submersible pump is designed for high-performance deep-well water extraction and pressure boosting applications. Built for reliability and efficiency, it ensures stable operation even under demanding hydraulic conditions.

Key Features

  1. 8″ radial submersible pump for deep-well and high-head applications
  2. Suitable for civil, industrial, mining, and irrigation systems
  3. Ideal for cistern filling, autoclave feed, and water distribution
  4. Stainless steel outer jacket for corrosion resistance and durability
  5. Integrated non-return valve for secure and stable operation
  6. Stainless steel shaft (AISI 431) for long service life
  7. Maximum flow rate up to 120–132 m³/h (depending on frequency)
  8. Maximum head up to 782 m (50 Hz) / ~693 m (60 Hz)
  9. Maximum power up to 110 kW
  10. Designed for high-efficiency performance under heavy-duty conditions

S181

The S181 submersible pump is designed for high-capacity water lifting, pressurisation, and distribution from wells, tanks, and basins. Its semi-axial hydraulic design ensures robust performance and efficiency across demanding civil, industrial, and offshore applications.

Key Features

  1. 8″ semi-axial submersible pump for high-flow applications
  2. Suitable for wells, tanks, basins, and offshore water supply systems
  3. Ideal for civil, agricultural, industrial, mining, and irrigation use
  4. Investment-cast hydraulic components for enhanced durability
  5. Material options: Super duplex, cast iron, stainless steel, bronze (variant dependent)
  6. Maximum flow rate up to 260 m³/h (60 Hz) / 228 m³/h (50 Hz)
  7. Maximum head up to 432 m (60 Hz) / 338 m (50 Hz)
  8. Maximum power up to 110 kW (60 Hz) / 92 kW (50 Hz)
  9. Engineered for reliable performance under continuous-duty conditions

VS8

The VS8 submersible pump is designed for efficient deep-well water extraction and high-capacity water transfer. Its semi-axial hydraulic design ensures reliable performance across agricultural, industrial, and large-scale water supply applications.

Key Features

  1. 8″ semi-axial submersible pump for high-efficiency operation
  2. Suitable for deep-well extraction, irrigation, and water distribution
  3. Ideal for agricultural, industrial, and large-scale transfer systems
  4. Super duplex, cast iron, or stainless steel construction (variant dependent)
  5. Maximum flow rate up to 200 m³/h (50 Hz) / 220 m³/h (60 Hz)
  6. Maximum head up to 294 m (50 Hz) / 310 m (60 Hz)
  7. Maximum power up to 110 kW
  8. Designed for robust and continuous-duty operation

NR250

The NR250 submersible pump is designed for high-performance deep-well water extraction and pressure-boosting applications. Its robust radial hydraulic system ensures exceptional head capability, efficiency, and reliability in demanding operating conditions.

Key Features

  1. 10″ radial submersible pump for deep-well and high-head applications
  2. Suitable for civil, industrial, irrigation, and large-scale water supply systems
  3. Ideal for tank filling, cistern/autoclave feed, and pressure boosting
  4. Steel outer housing for structural strength and durability
  5. Stainless steel radial hydraulics and shaft for corrosion resistance
  6. Integrated check valve for stable and secure operation
  7. Maximum flow rate up to ~230 m³/h
  8. Maximum head up to ~955 m (depending on motor/version)
  9. Maximum power up to ~185 kW
  10. Engineered for extreme-duty, high-pressure performance

S252-253

The S252-253 submersible pump is designed for high-capacity deep-well water extraction and large-scale water transfer. Its semi-axial hydraulic design ensures efficient performance, high reliability, and durability in demanding submerged applications.

Key Features

  1. 10″ semi-axial submersible pump for high-flow applications
  2. Suitable for deep-well extraction, irrigation, and large water supply systems
  3. Ideal for civil, industrial, mining, and offshore applications
  4. Robust hydraulic design for high efficiency and stable operation
  5. Material options: Super duplex, cast iron, stainless steel, or bronze (variant dependent)
  6. Maximum flow rate up to 450 m³/h
  7. Maximum head up to 388 m
  8. Maximum power up to 185 kW
  9. Designed for heavy-duty, continuous submerged operation

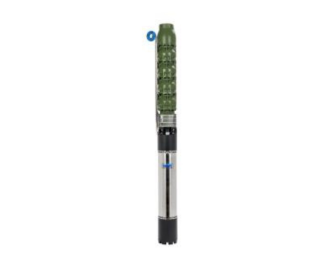

VS10

The 10″ semi-axial submersible pump is designed for deep-well water extraction and large-scale water transfer applications. Its high-efficiency hydraulic design ensures reliable performance, stable operation, and durability under demanding submerged conditions.

Key Features

  1. 10″ semi-axial submersible pump for high-capacity water transfer
  2. Suitable for deep-well extraction, irrigation, and civil/industrial supply
  3. Ideal for tank filling and large-scale boosting applications
  4. Stainless steel, super duplex, or cast iron construction (variant dependent)
  5. High-efficiency hydraulics for stable and reliable operation
  6. Maximum flow rate up to ~450 m³/h (depending on configuration)
  7. High head capability suitable for deep-well and long-lift applications
  8. Maximum operating pressure up to 31 bar
  9. Engineered for continuous-duty performance in demanding environments

S302

The 12″ semi-axial submersible pump is designed for high-capacity deep-well water extraction and large-scale water transfer applications. Its robust hydraulic design ensures efficient performance, reliability, and long service life even in demanding operating conditions.

Key Features

  1. 12″ semi-axial submersible pump for heavy-duty, high-flow applications
  2. Suitable for deep-well extraction, irrigation, and large water supply systems
  3. Ideal for industrial, civil, mining, and offshore applications
  4. Robust hydraulic design for high efficiency and stable operation
  5. Material options: Super duplex, cast iron, stainless steel, or bronze (variant dependent)
  6. Maximum flow rate up to 600 m³/h
  7. Maximum head up to 384 m
  8. Maximum power up to 300 kW
  9. Engineered for continuous operation in demanding environments

VS12

The 12″ submersible pump is designed for large-volume water supply and deep-well extraction, delivering reliable high-capacity performance for industrial, municipal, and heavy-duty applications. Its robust hydraulic design ensures efficiency and durability even in demanding operating conditions.

Key Features

  1. 12″ submersible pump for large-scale water transfer applications
  2. Suitable for deep-well extraction, irrigation, and municipal supply systems
  3. Ideal for industrial, civil, and heavy-duty distribution networks
  4. Robust hydraulic design for high efficiency and stable performance
  5. Material options: super duplex, cast iron, stainless steel, or bronze (variant dependent)
  6. Maximum flow rate up to 1,000 m³/h (depending on configuration)
  7. Maximum head up to approx. 350–400 m (depending on motor/stage configuration)
  8. Power range up to around 400 kW (model-dependent)
  9. Engineered for continuous operation under harsh conditions

S350

The 14″ semi-axial submersible pump is designed for large-volume water extraction and distribution, delivering reliable high-capacity performance for deep-well, industrial, and municipal applications. Its robust hydraulic design ensures efficiency, durability, and stable operation even under demanding conditions.

Key Features

  1. 14″ semi-axial submersible pump for high-capacity water transfer
  2. Suitable for deep-well extraction, irrigation, and municipal supply systems
  3. Ideal for industrial, civil, and heavy-duty distribution applications
  4. Wear-resistant hydraulic design for long service life
  5. Material options: super duplex, cast iron, stainless steel, or bronze (variant dependent)
  6. Maximum flow rate up to 725 m³/h
  7. Maximum head up to 196 m
  8. Maximum power up to 300 kW
  9. Engineered for continuous operation in harsh environments

VS14

The VS14 semi-axial submersible pump is designed for large-capacity and deep-well water extraction, delivering reliable high-flow performance for industrial, municipal, and heavy-duty water transfer applications. Its robust hydraulic design ensures stable operation, efficiency, and long service life even in demanding environments.

Key Features

  1. 14″ semi-axial submersible pump for high-capacity water transfer
  2. Suitable for deep-well extraction, irrigation, and municipal supply systems
  3. Ideal for industrial, civil, and heavy-duty applications
  4. Robust hydraulic design for high flow and strong head performance
  5. Material options: cast iron, stainless steel, or super duplex (variant dependent)
  6. Stainless steel shaft (AISI 431 or duplex/super duplex depending on variant)
  7. Maximum flow rate up to ~725 m³/h
  8. Maximum head up to ~196 m
  9. Designed for high-capacity industrial motor configurations (model-dependent)
  10. Engineered for reliable long-term operation in harsh conditions

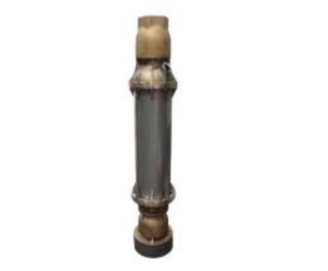

SM252

The SM252 submersible pump is designed for efficient clean-water extraction and distribution from wells, boreholes, and reservoirs. Its bottom-intake centrifugal design ensures stable performance in submerged conditions, making it suitable for a wide range of water supply applications.

Key Features

  1. Submersible centrifugal pump with bottom-intake (ballast) configuration
  2. Suitable for wells, boreholes, tanks, and reservoirs
  3. Ideal for domestic, agricultural, industrial, and marine applications
  4. Designed for clean-water extraction and distribution systems
  5. Pump body options: cast iron or stainless steel (variant dependent)
  6. Corrosion-resistant hydraulics and shaft for durability
  7. Reliable operation under submerged installation conditions
  8. Suitable for irrigation, civil supply, and industrial water transfer applications

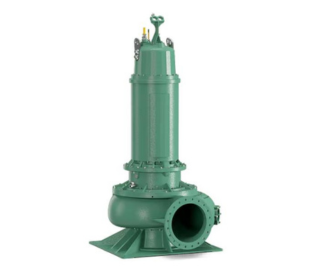

EMU FA

The EMU FA submersible pump is designed for reliable sewage and wastewater handling in municipal, industrial, and residential systems. Its robust construction ensures efficient operation with solids-laden and contaminated fluids in demanding environments.

Key Features

  1. Submersible sewage and wastewater pump for wet- or dry-well installation
  2. Suitable for municipal, industrial, and residential wastewater systems
  3. Handles untreated or pre-treated sewage, effluent, and process water with solids
  4. Multiple impeller options for varying solids content and application needs
  5. Cast iron housing with stainless steel shaft for durability
  6. Optional corrosion- and abrasion-resistant coatings
  7. ATEX-rated motor and monitoring options available
  8. Designed for clog-resistant and reliable long-term operation

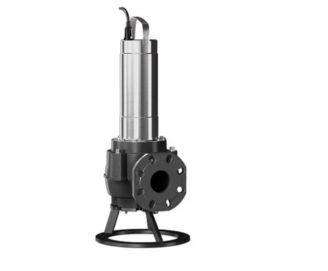

Rexa FIT

The Rexa FIT submersible pump is designed for efficient sewage and wastewater removal in buildings, lift stations, and commercial or industrial systems. Its vortex hydraulic design ensures reliable, clog-resistant performance in challenging wastewater conditions.

Key Features

  1. Submersible sewage and wastewater pump for wet-well or portable installation
  2. Suitable for buildings, lift stations, commercial, and industrial applications
  3. Vortex hydraulics for clog-resistant operation
  4. Handles sewage with soft solids and small debris
  5. Cast iron hydraulics housing and impeller for durability
  6. Stainless steel motor housing and shaft for corrosion resistance
  7. Dual mechanical seals with oil-filled chamber for protection
  8. Optional float switch and sealing chamber monitoring
  9. Designed for reliable and low-maintenance wastewater operation

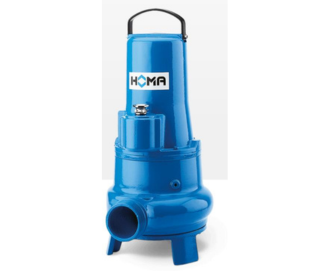

TP50

The TP50 submersible pump is designed for efficient domestic drainage and wastewater handling in buildings, septic systems, and industrial effluent applications. Its robust construction ensures reliable operation with soft solids and fibrous media.

Key Features

  1. Submersible pump for domestic drainage and wastewater applications
  2. Suitable for buildings, septic systems, and industrial effluent handling
  3. Handles soft solids and fibrous materials reliably
  4. Cast iron pump and motor housing for durability
  5. Stainless steel shaft for corrosion resistance
  6. SiC/SiC mechanical seal for enhanced wear protection
  7. Solids clearance: 50–65 mm
  8. Maximum flow rate up to 28.8–72.9 m³/h
  9. Maximum head up to 7.5–31.6 m
  10. Designed for reliable and efficient wastewater operation

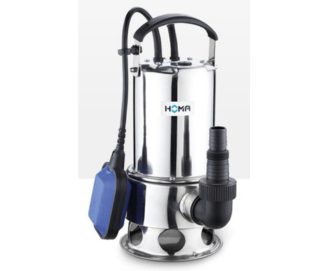

Pumpen — TCV/TCM

The submersible wastewater pump is designed for efficient drainage and sewage handling, ensuring reliable performance in applications involving fibrous and solid-laden fluids. Its stainless-steel construction and vortex/open impeller design provide clog-resistant operation in demanding environments.

Key Features

  1. Submersible pump for drainage and wastewater applications
  2. Suitable for sewage, effluent, and building drainage systems
  3. Handles fibrous and solid-laden wastewater efficiently
  4. Stainless steel housing, impeller, shaft, and fasteners for corrosion resistance
  5. Vortex/open impeller design for clog-free operation
  6. Free passage / solids clearance: 35–50 mm
  7. Maximum flow rate up to 16.5–28.0 m³/h
  8. Maximum head up to 12.7 m
  9. Designed for wet-well or portable installation configurations

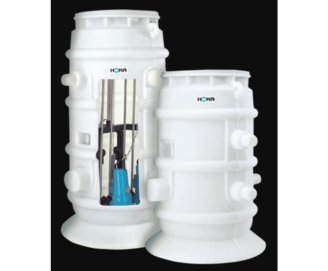

SKB6/SKB9

The SKB6/SKB9 is a pre-assembled pumping station designed for efficient sewage and wastewater drainage where gravity flow is not possible. It is suitable for residential, commercial, and industrial applications, ensuring reliable and space-efficient wastewater management.

Key Features

  1. Pre-assembled sewage and wastewater pumping station
  2. Suitable for buildings, commercial, and industrial drainage systems
  3. Designed for areas where gravity discharge is not possible
  4. Polyethylene collection tank for durability and corrosion resistance
  5. Cast iron pump coupling and discharge piping for strength
  6. Stainless steel guide rails and fittings for long service life
  7. Compatible with submersible sewage and wastewater pumps

You may also be interested in
